Face recognition models have been in the markets for decades now. It all started with the Eigenface Approach in the late ’80s to early ’90s. The Eigenface method is today used as a basis of many deep learning algorithms, paving way for modern facial recognition solutions.

The modern-day game-changers spurred on by the Annual ImageNet Large Scale Visual Recognition Challenge (ILSVRC).

Source: anyconnect.com

In 2012, AlexNet, which was a deep convolutional neural net (CNN) bested that result by getting an error rate of 15.3%. This was a game-changer because it was the first time that such results were achieved.

Subsequent image processing solutions in the following years improved on results of AlexNet. In 2014, GooLeNet/Inception achieved an error rate of 6.67%. In 2015, ResNet further brought the error rate down to 3.6%.

---

Introduction

1. What do we mean by ML-Ops?

The process of integrating the tools and concepts of DevOps for solving the problems faced while training Machine Learning Models, by automatic adjustment of the Hyper-parameters, leading to increased accuracy, is the fundamental concept behind ML-Ops.

The most important factor from DevOps, i.e. a focus on Continuous Integration/Continuous Delivery (CI/CD) is applied directly to model generation, while regular deployment, diagnostics and further training can also be done on a frequent process, rather than waiting for one large upload at much slower intervals.

Check out this great Article to know more

https://neptune.ai/blog/mlops-what-it-is-why-it-matters-and-how-to-implement-it-from-a-data-scientist-perspective

2. Transfer-Learning in the world of CNN

It is a machine learning method where a model developed for a task is reused as the starting point for a model on a second task.

It is a popular approach in deep learning where pre-trained models are used as the starting point on Computer Vision(CV) and Natural Language Processing(NLP) tasks are given the vast compute and time resources required to develop neural network models on these problems.

Source: towardsdatascience.com

This method can give high accuracy with limited images and resources.

---

Synopsis

This project explains the process of automating the task of adjusting the Hyper-parameters of our Face Recognition Model, for attaining the perfect accuracy using Docker, Jenkins and Git/GitHub.

Briefing about the Face Recognition model

The Face Recognition model is built using the method of Transfer Learning. VGG16 pre-trained model is used for the purpose.

The possible Hyper-parameter Tunings here:

★ Adjusting the number of FC layers

★ Adjusting the Learning Rate

★ Choosing an optimizer and a loss function

★ Deciding on the batch size and number of epochs

The Code for the Face Recognition model can be downloaded from here.

Video Demonstration of the Model

Pre-requisites

First of all, we are assuming that Docker, Git, and Jenkins with the Git Plugin are installed in the system.

In this article, we are directly beginning with integrating our Face Recognition Model with DevOps tools.

In this article, we are going to RHEL 8.2 as our Host OS.

---

Getting Started

We are going to use Docker containers to build and run our Machine Learning Models. Different custom Docker containers will be built using the DockerFile to support different architectures of the ML models.

Through Jenkins, we are going to create multiple jobs as follows:

JOB#1: Pulling the Github repository automatically when some developers push the repository to Github.

JOB#2: By looking at the code or program file, Jenkins will automatically start the respective image containers to deploy code and start training.

( eg. If code uses CNN, then Jenkins should start the container that has already installed all the software required for the CNN processing)

JOB#3:Training the model and predicting the accuracy or metrics.

JOB#4: If the Metrics Accuracy is less than 90%, then tweaking the machine learning model architecture.

JOB#5: Retraining the model and notifying that the best model is being created.

JOB#6:(Monitoring) If container where the app is running, fails due to any reason then this job will automatically start the container again from the last trained model.

1. Setting up the Docker Containers

We are going to create 3 Docker containers for serving different ML models.

✓ CNN model

✓ ANN model

✓ Linear/Logistic Regression Models

1.1. Setting up the Docker container for CNN and ANN models

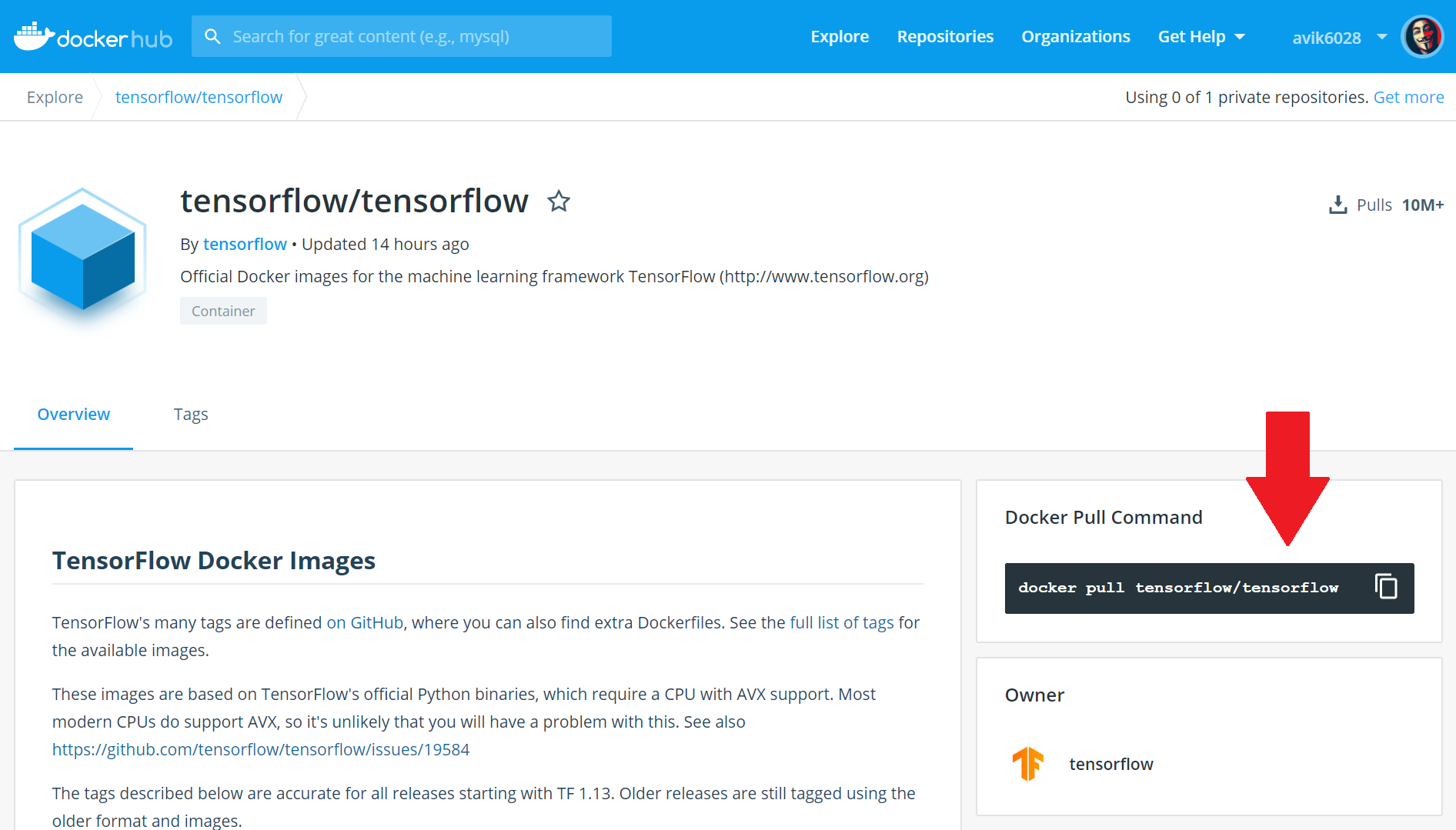

For setting up this container, we are going to use the tensorflow/tensorflow image from DockerHub.

To download the image to our local machine, we have to run the following command from the Command Line:

docker pull tensorflow/tensorflow

After installing the image, we need to modify the image so that we can run our CNN & ANN models in the container. We will be using Dockerfile to build our custom image.

To create the custom image, we need to create an empty file named Dockerfile anywhere in our host machine.

The contents of the Dockerfile will be as follows:

FROM tensorflow/tensorflow:latest

RUN pip3 install keras -y &&\
    pip3 install numpy -y &&\
    pip3 install pandas -y &&\
    pip3 install pillow -y &&\
    pip3 install scikit-learn -y &&\</span>

After making the Dockerfile we need to build it to create our image using:

docker build -t cnn_image:v1 . (from the same folder)

This would create our custom cnn_image image in the local machine.

1.2. Docker container for Linear/Logistic Regression Models

For setting up this container, we are going to use the centos image from DockerHub.

To download the image to our local machine, we have to run the following command from the Command Line:

docker pull centos

After installing the image, we need to modify the image so that we can run our Linear/Logistic Regression Models in the container. We will be using Dockerfile to build our custom image.

To create the custom image, we need to create an empty file named Dockerfile anywhere in our host machine.

The contents of the Dockerfile will be as follows:

FROM centos:latest

RUN yum install epel-release -y &&\
    yum update -y &&\
    yum install python36 -y &&\
    pip3 install scikit-learn -y &&\
    pip3 install numpy -y &&\
    pip3 install pandas -y &&\
    pip3 install matplotlib -y &&\
    pip3 install pillow -y &&\
    yum update -y</span>

After making the Dockerfile we need to build it to create our image using:

docker build -t regression_image:v1 . (from the same folder)

This would create our custom regression_image image in the local machine.

★ Thus we have successfully set up the Docker containers in our system. ★

To verify the installation of Docker images we can check the list of all images installed in our local machine: docker image ls

---

2. Building the Jenkins Pipeline

2.1. Job-1: Automatic Code Download

Before downloading the code, we need to create some folders on our local machine which would act as volumes for the Docker containers.

To create the folders in our local machine:

mkdir /root/Desktop/ml_models
cd /root/Desktop/ml_models/
mkdir cnn ann reg</span>

First, the downloaded codes would be copied in the ml_models directory.

For creating the Job for downloading codes:

1. Select new item option from the Jenkins menu.
2. Assign a name to the Job ( eg. model_download )and select it to be a Freestyle project.
3. From the Configure Job option, we set the configurations.
4. From the Source Code Management section, we select Git and mention the URL of our GitHub Repository and select the branch as master.
5. In the Build Triggers section, we select Poll SCM and set the value to * * * * *. This means that the Job would check any code change from GitHub every minute.
6. In the Build Section, we type the following script: sudo cp -v -r -f * /root/Desktop/ml_modelsThis command would copy all the content downloaded from the GitHub master branch to the specified folder for deployment.
7. On clicking the Save option, we add the Job to our Job List.

On coming back to the Job List page, we can see the Job is being built. If the colour of the ball turns blue, it means the Job has been successfully executed. If the colour changes to red, it means there has been some error in between. We can see the console output to check the error.

Till now, we have successfully downloaded the codes from GitHub to our Server System automatically.

2.2. Job-2: Classifying the files based on the architecture of the model

Once the files have been downloaded, we need to copy the files to their respective folders automatically.

For creating the Job for classifying the files:

1. Select new item option from the Jenkins menu.
2. Assign a name to the Job ( eg. model_classification )and select it to be a Freestyle project.
3. From the Configure Job option, we set the configurations.
4. From the Build Triggers section, we select Build after other projects are built and mention model_download as the project to watch. This is called a DownStreaming Job.
5. In the Build Section, we type the following script:

6. On clicking the Save option, we add the Job to our Job List.

Thus, we have successfully transferred the files to their respective folders. Also, we have set these folders as volumes of the Docker Containers and started the service.

2.3. Job-3: Training the model and predicting the accuracy or metrics

Now, we have to start training the model already loaded to the respective Docker container.

For creating the Job for Training the model:

1. Select new item option from the Jenkins menu.
2. Assign a name to the Job ( eg. model_training )and select it to be a Freestyle project.
3. From the Configure Job option, we set the configurations.
4. From the Build Triggers section, we select Build after other projects are built and mention model_classification as the project to watch. This is called a DownStreaming Job.
5. In the Build Section, we type the following script:

6. On clicking the Save option, we add the Job to our Job List.

By the end of this job, we have downloaded, classified and trained the model. We have also found out the accuracy of the model after training.

For this project, we are setting 90% as the needed Accuracy for the project.

Now, if we find the accuracy obtained is not sufficient, we have to do the Hyper-parameter tuning. This would start the Job-4.

Otherwise, a mail would be sent to the user stating the Desired accuracy has been reached. This would be done by Job-5.

2.4. Job-4: Retraining the model to increase the Accuracy

Suppose, after training the model, we find out the accuracy is below the desired amount. Thus, we have to adjust the hyper-parameters for increasing the accuracy of the models.

This is where DevOps steps in. With the help of Continuous Integration Pipeline (CI Pipeline), we can automate the process of Hyper-parameter tuning. Thus the work which would require a lot of days if done manually can be finished within a few hours without much human intervention.

Note: After training and testing our Face Recognition model locally, it has been found out that adding some extra Fully Connected Layers (FC Layer), increases the accuracy beyond our desired mark.

Thus we are focussing on adjusting a single hyperparameter for this article. Later on, we can easily add the function of checking other hyperparameters, if a specific model demands one.

For creating the Job for Retraining the model:

1. Select new item option from the Jenkins menu.
2. Assign a name to the Job ( eg. model_retrain)and select it to be a Freestyle project.
3. From the Configure Job option, we set the configurations.
4. From the Build Triggers section, we select Trigger builds remotely an option.
5. Provide an Authentication Token
6. In the Build Section, we type the following script:

7. On clicking the Save option, we add the Job to our Job List.

Thus, the Job has been setup. To Trigger the Build, the following command would run the job: curl --user "<username>:<password>" JENKINS_URL/view/Mlops-project-1/job/model_retrain/build?token=TOKEN_NAME

e.g. curl --user "admin:admin" http://192.123.32.2932:8080/view/Mlops-project-1/job/model_retrain/build?token=retraining_model

2.5. Job-5: Notifying that the best model is being created

If the trained model gives the desired accuracy at the beginning or by Hyper-parameter tuning, a mail is automatically sent to the user confirming the action.

For creating the Job for Notifying that the best model is being created:

1. Select new item option from the Jenkins menu.
2. Assign a name to the Job ( eg. model_notify)and select it to be a Freestyle project.
3. From the Configure Job option, we set the configurations.
4. From the Build Triggers section, we select Trigger builds remotely an option.
5. Provide an Authentication Token
6. In the Build Section, we type the following script:

sudo cp -rf /root/Desktop/ml_models/ *
sudo python3 sendmail.py</span>

7. On clicking the Save option, we add the Job to our Job List.

Thus, the Job has been setup. To Trigger the Build, the following command would run the job: curl --user "<username>:<password>" JENKINS_URL/view/Mlops-project-1/job/model_notify/build?token=TOKEN_NAME

e.g. curl --user "admin:admin" http://192.123.32.2932:8080/view/Mlops-project-1/job/model_notify/build?token=model_notification

---

Now, we have to introduce these remote triggers we have created in our Model file. For that, at the end of the code, we add a conditional statement:

2.5. Job-6: Additional Monitoring Job

If the container where the app is running, fails due to any reason then this job will automatically start the container again from the last trained model.

For monitoring the Jobs created:

1. Select a new item option from the Jenkins menu.
2. Assign a name to the Job ( eg. monitor_job )and select it to be a Freestyle project.
3. From the Configure Job option, we set the configurations.
4. From the Build Triggers section, we select Build after other projects are built and mention model_train & model_retrain as the project to watch.

It is important to select “Trigger even if the build fails” option from the drop-down list.

5. In the Build Section, we type the following script:

6. From the Post Build Actions dropdown, we select “Build Other Projects” and mention model_train as the project to build.

7. On clicking the Save option, we add the Job to our Job List.

Therefore, whenever a container stops due to some problems during training the model, Jobs#3 & Jobs#4 would fail. This would trigger this Job#6 to restart the containers and again start Job#3.

---

Understanding the Complete Workflow properly

When a user adds a new model in the connected GitHub account,

★ Jenkins would download the code into the local system.

★ Once the code is received, Job#2 would classify the model and add it to the respective folder and attach the folder as the volume of the Docker Container.

★ Job#3 would execute the file inside the Docker container and train the model and predict the accuracy or metrics.

★ Now, if the accuracy is below the desired, Job#4 would run. It would retrain the model by changing the hyper-parameters.

★ Once the accuracy becomes greater than the desired, Job#5 will be fired, resulting in the automatic sending of an e-mail to the Developer.

★ At last, Job#6 is set as a Monitoring Job. It would continuously check whether the container crashes during training and would restart them.

---

Conclusion

Previously, we had an additional 3 Dense layers attached to the pre-trained model of VGG16. We came to an accuracy of 86%.

After running this Pipeline, 2 more layers were added at the end through these automation tools, due to which the accuracy touched 92%.

This method of Automated Hyperparameter Tuning would help in adjusting the accuracy of Machine Learning models faster and efficiently. This is the main reason for using the power of ML-Ops to solve these real-life situations.

---
